A-A-550A

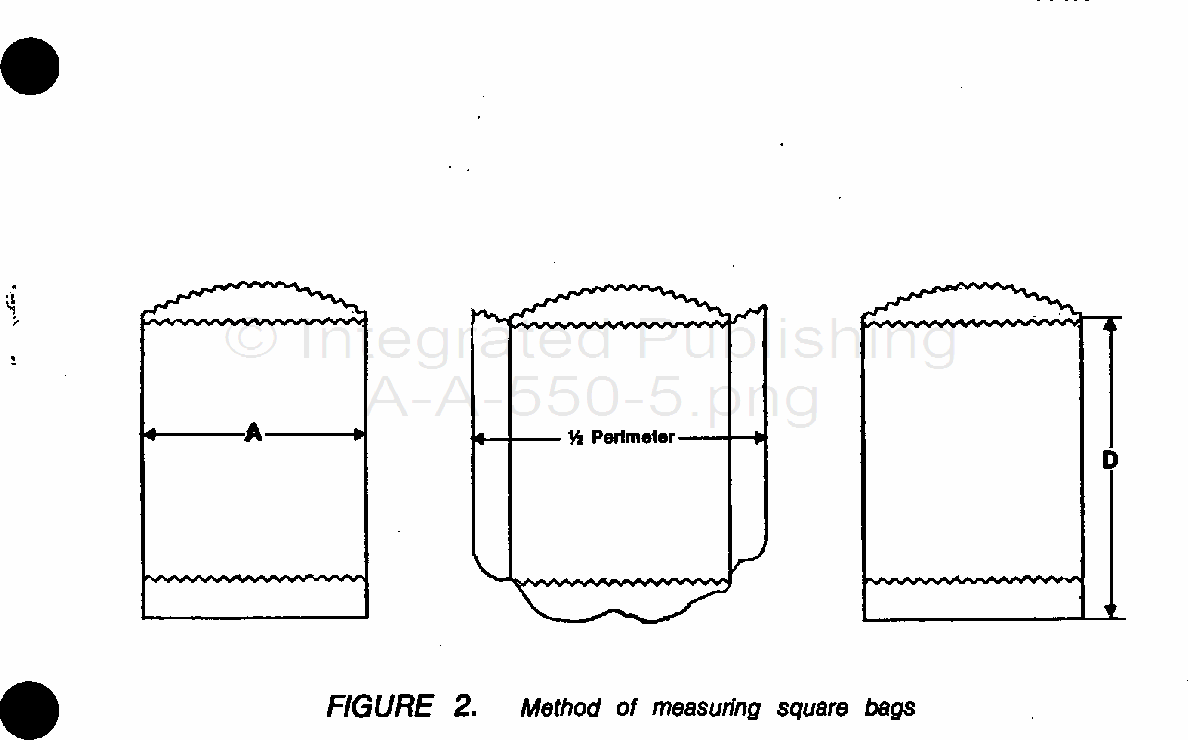

Face width (A): Measure across the front of the folded bag just above the top of the bottom fold as shown in figure 2.
Tuck width (C): Spread the bag so that the tucks normally behind the face are fully extended outward. Press the bag flat and measure full width as close to the bottom fold as possible. This gives one-half perimeter. Subtracting the face width (A) from this measurement gives dimension (C), the tuck width.
Bag length (D): Measure along center of the front face of the bag, from the lower bottom fold to the top of the serrated edge of the front face.
Cubic capacity is the product of the face width, tuck width, and the bag length minus one-half the tuck width: AXCXD-1/2 C).
