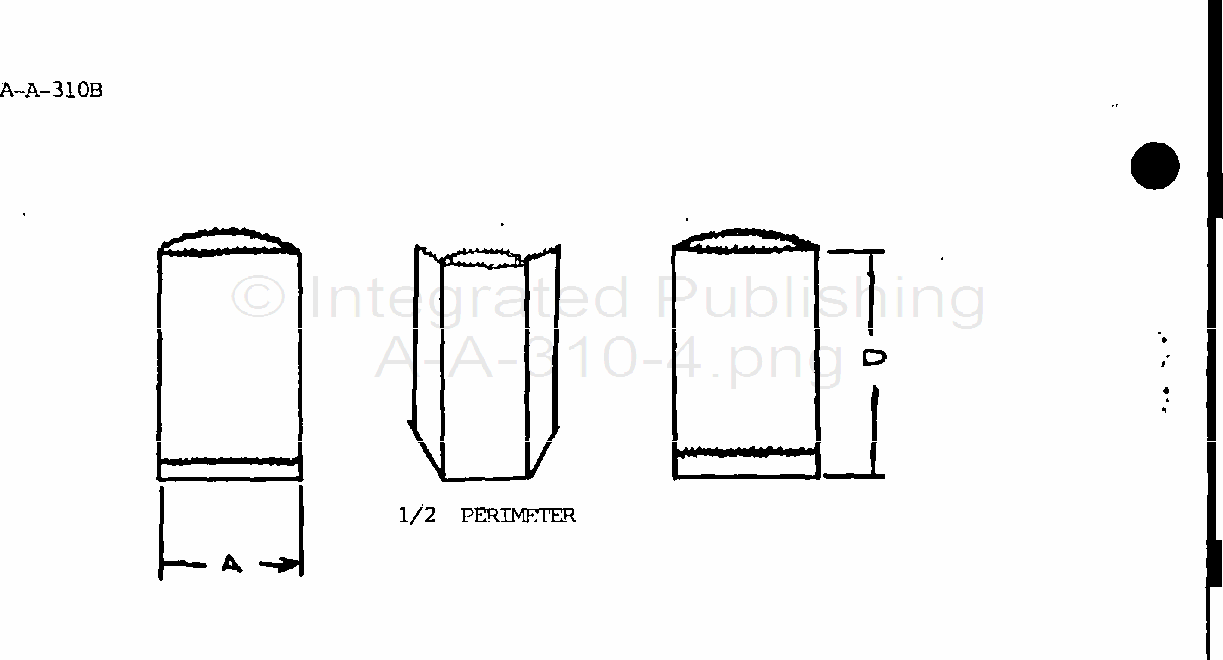

Face Width, A: Measure across the front of the folded bag just above the top of the bottom fold.
Tuck width, C: Spread the bag so that the tucks normally behind the face are fully extended outward. Measure across flattened area of the bag as close to the bottom fold as possible. Subtract the face width from this measurement to get dimension C.
Bag length, D: Measure along center of the bag, from the bottom fold to the top of the serrated edge of the front face.
